Latch Up In CMOS

What is latch up in CMOS design and ways to prevent it?

A Problem which is inherent in the p-well and n-well processes is due to relatively large number of junctions which are formed in these structures, the consequent presence of parasitic diodes and transistors.

Latch-up is a condition in which the parasitic components give rise to the Establishment of low resistance conducting path between VDD and VSS with Disastrous results

Latch-up may be induced by glitches on the supply rails or by incident radiation.

Latch-up pertains to a failure mechanism wherein a parasitic thyristor (such as a parasitic silicon controlled rectifier, or SCR) is inadvertently created within a circuit, causing a high amount of current to continuously flow through it once it is accidentally triggered or turned on. Depending on the circuits involved, the amount of current flow produced by this mechanism can be large enough to result in permanent destruction of the device due to electrical overstress (EOS).

Preventions for Latch-Up

• by adding tap wells, for example in an Inverter for NMOS add N+ tap in n-well and connect it to Vdd, and for PMOS add P+ tap in p-substrate and connect it to Vss.
• an increase in substrate doping levels with a consequent drop in the value of  Rs.
• reducing Rp by control of fabrication parameters and by ensuring a low contact resistance to Vss.
• and the other is by introducing of guard rings.....

Latchup in Bulk CMOS

A byproduct of the Bulk CMOS structure is a pair of parasitic bipolar transistors. The collector of each BJT is connected to the base of the other transistor in a positive feedback structure. A phenomenon called latchup can occur when (1) both BJT's conduct, creating a low resistance path between Vdd and GND and (2) the product of the gains of the two transistors in the feedback loop, b1 x b2, is greater than one. The result of latchup is at the minimum a circuit malfunction, and in the worst case, the destruction of the device.

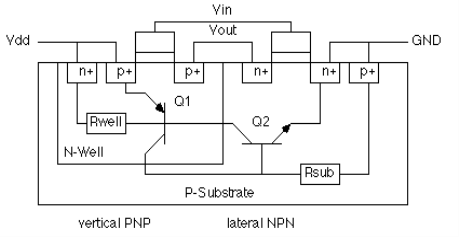

  Cross section of parasitic transistors in Bulk CMOS

 Equivalent Circuit

Latchup may begin when Vout drops below GND due to a noise spike or an improper circuit hookup (Vout is the base of the lateral NPN Q2). If sufficient current flows through Rsub to turn on Q2 (I Rsub > 0.7 V ), this will draw current through Rwell. If the voltage drop across Rwell is high enough, Q1 will also turn on, and a self-sustaining low resistance path between the power rails is formed. If the gains are such that b1 x b2 > 1, latchup may occur. Once latchup has begun, the only way to stop it is to reduce the current below a critical level, usually by removing power from the circuit.

The most likely place for latchup to occur is in pad drivers, where large voltage transients and large currents are present.

Preventing latchup

Fab/Design Approaches:

1. Reduce the gain product b1 x b1

• move n-well and n+ source/drain farther apart increases width of the base of Q2 and reduces gain beta2 ­> also reduces circuit density
• buried n+ layer in well reduces gain of Q1

    2. Reduce the well and substrate resistances, producing lower voltage drops

· higher substrate doping level reduces Rsub

· reduce Rwell by making low resistance contact to GND

· guard rings around p- and/or n-well, with frequent contacts to the rings, reduces the parasitic resistances.

CMOS transistors with guard rings

Systems Approaches:

1. Make sure power supplies are off before plugging a board. A "hot plug in" of an unpowered circuit board or module may cause signal pins to see surge voltages greater than 0.7 V higher than Vdd, which rises more slowly to is peak value. When the chip comes up to full power, sections of it could be latched.
2. Carefully protect electrostatic protection devices associated with I/O pads with guard rings. Electrostatic discharge can trigger latchup. ESD enters the circuit through an I/O pad, where it is clamped to one of the rails by the ESD protection circuit. Devices in the protection circuit can inject minority carriers in the substrate or well, potentially triggering latchup.
3. Radiation, including x-rays, cosmic, or alpha rays, can generate electron-hole pairs as they penetrate the chip. These carriers can contribute to well or substrate currents.
4. Sudden transients on the power or ground bus, which may occur if large numbers of transistors switch simultaneously, can drive the circuit into latchup. Whether this is possible should be checked through simulation.
